Urban Greenness & Chronic Illness — Miami’s Built Environment & Health Researchers Take Stock

City life impacts your health. We’re not talking about “city life” in any abstract sense. Take the term literally.

We’re talking about the actual biology of the city, urban ecology. More specifically, we’re talking about metropolitan plant life.

There is a concrete relationship between the relative concentration of vegetated surfaces, such as grass, versus that of non-vegetated surfaces, such as actual concrete. That’s the latest finding from a group of Miami researchers who study the impact of the built environment as it relates to community health.

The research team, led by faculty at the University of Miami’s Schools of Medicine and Architecture, and includes officials from the Miami-Dade County Parks Department, measured the distribution and pattern of vegetated surfaces throughout Miami-Dade. They then sought to compare neighborhoods in terms of both block-level vegetation and prevalence of illness.

Miami Geographic‘s article “Public Health Study: Proximity to Sprawl Affects Walkability” summarized previous research findings made by some of these Miami-based built environment and health researchers.

The current study, also published in the American Journal of Preventive Medicine, is titled “Neighborhood Greenness and Chronic Health Conditions in Medicare Beneficiaries”. Funding for the project came from the Department of Housing and Urban Development’s Sustainable Communities Research Grant Program.

(Full disclosure: I am a proud member of the above-described research team and co-author on the study. All views expressed here in Miami Geographic are, of course, my own and not to be associated with any other person or entity.)

While both papers document research investigating how the built environment impacts quality of life and associated health outcomes, their objectives, data, and methods are quite disparate. Rather than examine proximity to sprawl versus proximity to the core in relation to walkability, as was done in the previous study, the current research sought to assess the relative ‘greenness’ of vegetation in relation to chronic disease.

That construct, greenness, was operationalized as a quantitative variable through a commonly used vegetation index, the normalized difference vegetation index (NDVI).

(See the methods note below for a brief explanation on how NDVI is calculated.)

NDVI produces values ranging from -1.00 to 1.00.

The United States Geological Survey (USGS) provides some good examples of the typical NDVI values registered by various land covers:

Areas of barren rock, sand, or snow usually show very low NDVI values (for example, 0.1 or less). Sparse vegetation such as shrubs and grasslands or crops may result in moderate NDVI values (approximately 0.2 to 0.5). High NDVI values (approximately 0.6 to 0.9) correspond to dense vegetation such as that found in temperate and tropical forests or crops at their peak growth stage.

NDVI was calculated from multi-spectral satellite imagery data. Values were aggregated at the census block level and summarized as mean NDVI per block.

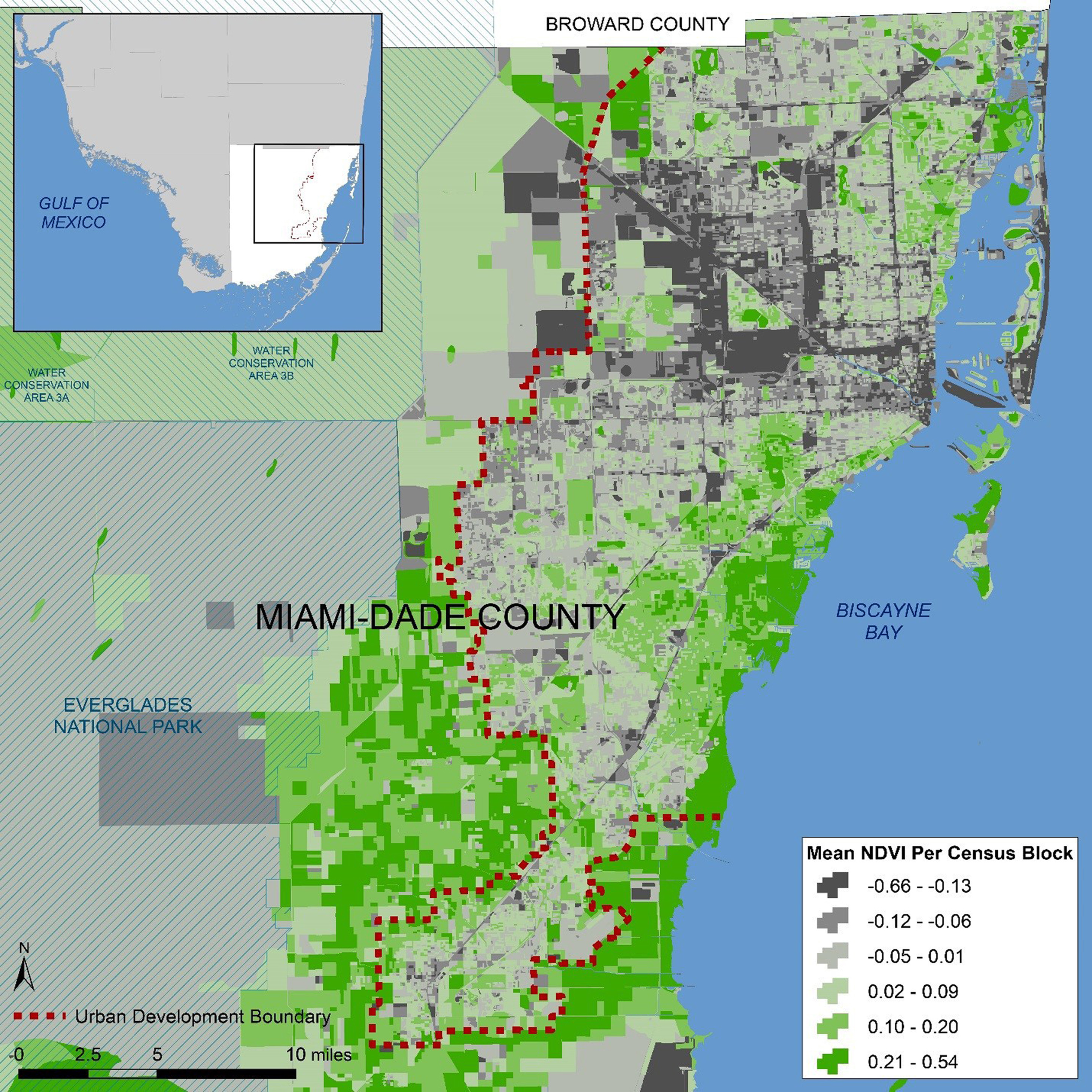

Mean Normalized Difference Vegetation Index (NDVI) for Miami-Dade County, Florida's Census Blocks. Map Source: Matthew Toro. 2016. [Reprinted with copyright clearance permission of Elsevier, publisher of the American Journal of Preventive Medicine.]

Mean Normalized Difference Vegetation Index (NDVI) for Miami-Dade County, Florida’s Census Blocks. Map Source: Matthew Toro. 2016. [Reprinted with copyright clearance permission of Elsevier, publisher of the American Journal of Preventive Medicine.]

The broad, county-level patterns we see shouldn’t be too surprising. These patterns correspond roughly to the spatial footprint of the Miami metropolitan region, especially within the urban development boundary.

County land use also dictates some aspects of the general pattern we see in greenness, but even within the same use category, the comparative presence and robustness of of vegetation is never identical. Neighborhood greenness in the single-family residential areas of the City of South Miami, for instance, is much different in quantity and quality than that of the single-family areas of the City of Hialeah.

Additional analyses into the interrelationships of urban land use / land cover and vegetation are warranted.

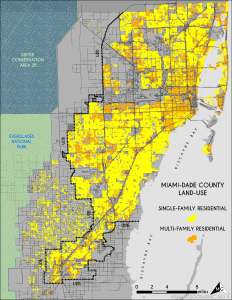

Residential Land-Use in Miami-Dade. Source: Matthew Toro. 2014.

Residential Land Use in Miami-Dade. Source: Matthew Toro. 2014.

Commercial Land-Use in Miami-Dade. Source: Matthew Toro. 2014.

Commercial Land Use in Miami-Dade. Source: Matthew Toro. 2014.

Industrial Land-Use in Miami-Dade. Source: Matthew Toro. 2014.

Industrial Land Use in Miami-Dade. Source: Matthew Toro. 2014.

Park Land-Use in Miami-Dade. Source: Matthew Toro. 2014.

Park Land Use in Miami-Dade. Source: Matthew Toro. 2014.

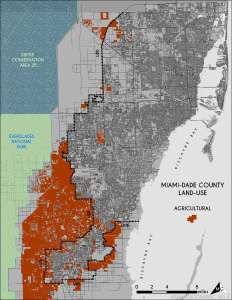

Agricultural Land-Use in Miami-Dade. Source: Matthew Toro. 2014.

Agricultural Land Use in Miami-Dade. Source: Matthew Toro. 2014.

So what do greenness levels have to do with chronic illness in urban environments?

The team collected health data on a large sample of Medicare beneficiaries. Medicare is the US government’s insurance program for Americans 65 years and older who have paid into the system. It’s healthcare for older Americans.

Health records for approximately 250,000 recipients of Medicare benefits were ultimately analyzed (after filtering the dataset along various eligibility criteria).

Within those quarter-million Medicare beneficiary records were data on a range of 27 chronic conditions derived from algorithms developed by the Centers for Medicare and Medicaid Services’ (CMS’) Chronic Conditions Warehouse.

Many of the chronic conditions analyzed are obesity-related. The relationship of obesity to many of these conditions is surprising, but well-documented in the scientific literature, such as in the cases of

  • Alzheimer’s disease /  dementia,
  • arthritis,
  • asthma, and
  • cancer in the uterus lining (endometrial cancer).

The relationship is less surprising in other cases, such as those of

  • abnormal heart beat (atrial fibrillation)
  • heart attack (acute myocardial infraction),
  • diabetes,
  • colorectal cancer,
  • heart disease,
  • heart failure,
  • high blood pressure (hypertension),
  • excessive fat in the blood (hyperlipidemia), and
  • stroke (transient ischemic attack).

The researchers found that as NDVI-measured greenness increased, there were notable reductions in chronic illness conditions. The specific findings from this data-rich project are many, so we’ll focus here only on the most compelling and simplest to understand:

  • Every 0.1-unit increase in block-level NDVI was significantly associated with a 7% greater likelihood of being free of any chronic condition
  • Every 0.1-unit increase in block-level NDVI was significantly associated with an 8% greater likelihood of being free of obesity-related chronic conditions
  • Every 0.1-unit increase in block-level NDVI is associated with a significantly reduced risk of three specific conditions:
    • diabetes (8% reduced risk)
    • hypertension (7% reduced risk)
    • hyperlipidemia (6% reduced risk)
  • Greater block-level NDVI is significantly associated with better health outcomes in low- and medium-income neighborhoods than it is in high-income neighborhoods

So what’s the lesson here? How is any of this useful in terms of urban design, planning, and public health policy?

There’s already a strong body of evidence supporting the fact that higher vegetation levels improve public health. Many scholarly articles in the literature focus on the psychological impacts of keeping and bringing more nature in the city.

Apart from the mental health benefits of improved access to greenspace, though, this study emphasizes physical health benefits too, especially with regard to reducing some of the most fatal chronic health risks prevalent in American society.

Think about it: Where would you prefer to take an after-lunch stroll, or meet your loved one for a picnic, or get in your daily work-out, or hang-out with your friends, or have your beloved abuelita live? In a neighborhood characterized by streets lined with thick green shade trees and shrubbery, or in a neighborhood filled with comparatively barren streets dominated by the black and greys of ashpalt and concrete? Enhanced neighborhood greenness equates to more active, more socially-engaging environments. These sorts of places produce healthier lifestyles than their less green counterparts.

Of course, lush urban vegetation also brings critical ecological benefits, property value benefits, traffic-calming and transportation safety benefits, among many others, but looking at the benefits to community health alone is enough to justify prioritizing the greening of our cities.

Particularly interesting is the team’s finding that the health benefits seen by increasing access to greenspaces in low- and medium-income neighborhoods is relatively greater than those seen in wealthier communities. Not coincidentally, these less affluent neighborhoods are also more vulnerable when it comes to access to medical care and overall physical well-being.

Our community leaders can therefore potentially make huge impacts on our collective liveability, our collective public health, by ensuring that all of Miami’s neighborhoods, rich and poor, get equitable access to nature in the city.

A brief note on calculating NDVI:

The process of calculating NDVI isn’t too hard to understand. First, you need multi-spectral imagery of your study area. Such images typically come from satellite sensor systems orbiting and taking photographs of the Earth as you read this very sentence.

Satellite-derived multi-spectral images are not merely images, though. They’re actually data on how different wavelengths of energy interact with Earth’s different types of surface materials. Each pixel of the image has a numeric value corresponding to the energy reflecting off the planet.

Multi-spectral imagery contains values of energy in different parts of the electromagnetic spectrum (EMS), the spectrum on which we can classify different types of energy, such as radio waves, microwaves, infrared waves, light waves, ultraviolet waves, x-rays, gamma waves.

We humans see light in the visible parts of the spectrum — think of the colors of the rainbow.

Green, photosynthesizing surfaces of vegetation such as the crowns of street trees, grass lawns, and landscaped shrubs reflect light energy differently than non-photosynthesizing surfaces such as asphalt roads, concrete buildings and sidewalks, metal bridges, tile roofs, or bodies of water.

Two specific spectral bands of satellite imagery data are used in a simple ratio to derive the normalized difference vegetation index: the band of visible red light (RED), and the invisible (at least invisible to the human eye) band of near infrared light (NIR).

The ratio is simple:

(NIR – RED) / (NIR + RED)

where the difference in reflectance values between the near infrared and red bands is divided by the sum of reflectance values between the near infrared and red bands.

Ready for more acronym soup?

Advanced Spaceborne Thermal Emission Reflection Radiometer (ASTER) satellite imagery were used for the analysis. The ASTER mission is a joint US (National Aeronautics and Space Administration: NASA) and Japan (Ministry of Economy, Trade, and Industry: METI) effort yielding free, publicly-available 15-meter spatial resolution satellite imagery.
